MOT: Linear Combination of Atomic Orbitals (LCAO)

Molecular orbital theory is quite successful in solving the mystery of molecules. In VBT we have learnt that only valence electrons and their corresponding orbitals of different atoms take part in bonding and form a molecule. The MOT suggests that all atomic orbitals of different atoms come together and produce molecular orbitals, thus whole atoms participate in bonding to form a molecule. And these molecular orbitals are associated with all the nuclei in the molecule (nucleus of all bonded atoms).

Do you ever imagine how do any two atoms combine to form a molecule? Two different atoms come closer to each other, but their nuclei repel each other and their electrons are attracted by other's nuclei. Both attractive force and repulsive force work between them, but at certain distance these forces balance each other. This optimum distance, where both forces are in equilibrium with each other, is called the bond length. It means that at this distance these atoms can make a stable bond together.

As I have told you that MOT is based on the dual nature of electron. So here we will describe an electron occupying an atomic orbital by its wave function ψ and we will see how MOT finds the wave function of a molecular orbital.

But we will try ourselves first. If we have 2 atoms A and B, each has 2 orbitals and all of them will combine to produce molecular orbitals. So we have to produce 2+2=4 molecular orbitals. Let’s suppose these orbitals are made up of clay. a₁, a₂ orbitals and atom B has b₁, b₂ orbitals. We can take half of the clay from each orbital from each atom and mix them to form one molecular orbital like:

½(a₁) + ½(b₁) = MO₁,

 ½(a₁) + ½(b₁) = MO₂,similarly we can get other 2 MOs.

Or we can proceed through another way. We can mix the clay from all the atomic orbitals and then make new MOs. Like:

 a₁ + a₂ + b₁ + b₂  = MO₁ + MO₂ + MO₃+ MO₄

MOT also has two procedures to get wave function of molecular orbital. One way is similar to our first procedure, in which it suggests that atoms come to the equilibrium distance and mix their atomic orbitals to produce molecular orbitals. This approach is called the ‘Linear Combination of Atomic Orbitals’ (LCAO).

Other way is similar to our second procedure, in which MOT suggests that atoms superimpose each other and produce new molecular orbitals and then move apart to their equilibrium distance. This approach is called the ‘United Atom Method’.

LCAO is the most accepted approach of MOT. Let’s see what is LCAO. Consider two atoms A and B which have atomic orbitals described by wave function ψ_(A) and ψ_(B). If these two atoms come to the equilibrium distance, their electron clouds overlap with each other and the wave function of molecular orbital can be obtained by linear combination of atomic orbitals ψ_(A) and ψ_(B).

ψ_(AB)  = N { c₁ψ_(A)  + c₂ ψ_(B) }

Where ψ_(AB) is the wave function of molecular orbitals of the molecule AB. N, the normalization constant chosen to get the probability of finding an electron in a space is unity. And c₁ and c₂are constants for energy.

In the next post we will learn how do real orbitals (s, p, d) combine to form molecular orbitals.​

This work is licensed under the Creative Commons Attribution- NonCommercial- NoDerivatives 4.0 International License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-nd/4.0/.

Molecular Orbital Theory: Dual Nature of Electron

The Molecular Orbital Theory is the most advanced theory and developed by Robert S. Mullikan. It is based on the dual nature of electron. You might be surprised to know that electrons also have dual nature, one fake and other real? It is not as simple as that but electrons are going to get you surprised more often than you think.

You have learned that in an atom electrons are found in certain orbits that means electrons are similar to the particles and you can locate them in a space. You have also learned that in an atom electrons are moving around the nucleus that means electrons are like wave that travels continuously in a space. That means electrons are like particle in some ways and like wave in other ways. This dual nature of electron is postulated by De Broglie in 1924.

Have you ever tried to notice the blades of a fan when it is running? You can easily notice them separately when it is at low rpm (rounds per minute) but at higher rpm it becomes so difficult that you can’t even judge the number of blades. Similarly electrons are too small to see and they move so fast that it becomes impossible to measure their velocity and position accurately at the same time. Heisenberg has expressed this uncertainty in mathematical term as:

Δx. Δv ≥  ɦ

                 4π

where ɦ = Plank’s constant = 6.6262 ×10^‑34 Js

Δx is uncertainty in position

Δv is uncertainty in velocity

That means when we are able to define the position of an electron precisely, we can define its velocity less precisely. It alters the definition of orbit. Until now we have been saying that electrons are following a certain orbit or found in a certain orbital; now we must say that orbit and orbital are the places where there is maximum probability of finding an electron.

So how should we define an electron in this new definition? Schrödinger wave equation provides a satisfactory description of an atom in these terms. Solution to the wave equation is called the wave function and is given by the symbol ψ (psi). We can describe electron either as particle or as wave. That’s why electron in an atom may be described as occupying an atomic orbital or by a wave function ψ.

For example last electron of Nitrogen may be described as electron occupying an orbital 2p_zor in terms of wave function it can described as ψ_2pz.

In VBT we have seen that molecules are made up of atoms. Atomic orbitals of central atom overlap with other atomic orbitals to form bonds. For example, in CH₄ molecule we have seen that sp³ hybridised orbitals of C overlap with s orbitals of H atoms. And at the end we have mentioned that C has gained 4 electrons from H atoms in CH₄ molecule.

But MOT suggests that in a molecule, atomic orbitals from different atoms get merged and form molecular orbitals that belong to all atoms. In the next post we will see how MOT deals with atomic orbitals.

This work is licensed under the Creative Commons Attribution- NonCommercial- NoDerivatives 4.0 International License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-nd/4.0/.

Effect of Lone Pairs on Hybridization

We have discussed the effect of ghost lone pairs on the shape of a molecule in the post about VSEPR theory. The effect lone pairs exert is the same in VBT as it was in VSEPR. In this post we will study a few examples in which central atom possess lone pairs.

First, we will take the example of NH₃ molecule. When you draw its Lewis dot structure, you will find three bonding pairs of electrons and one lone pair on N. Now write the ground state configuration of N.

⁷N: 1s², 2s², 2p³

N already has 3 unpaired electrons in ground state to make bond with 3 H atoms.  You may think why does N need hybridization in this case when it has 3 unpaired electrons of the same orbital p? Because hybridized orbitals are more competent in overlapping which results in a stronger bond.

In NH₃ molecule, N chooses sp³hybridization. This may get you puzzled again, if N has 3 unpaired electrons in p why does it include s orbital which has paired electrons? You know that the atoms follow Hund’s rule for filling electrons in orbitals, similarly they have to consider energy order of orbitals in hybridization also. When an atom undergoes hybridization, it has to pick orbitals in the increasing order of their energies. In NH₃, N has to first pick 2s then 2p_x, 2p_yand then 2p_z. N can’t ignore 2s even if it is filled because 2s has the lowest energy and N has to include all three 2porbitals because it needs them for bonding with three H atoms.

Now four sp³ hybridized orbitals get arranged in tetrahedral shape. One sp³orbital is occupied by lone pair and other three are used for making sigma bond with 1s orbitals of three H atoms.

We have already studied that lone pairs are like aloof ghosts; they repel bonding pairs and decrease the bond angles. In NH₃ molecule, the lone pair repels bonding pairs, compresses them and distorts the tetrahedral shape to pyramidal shape.

Let’s take another example of H₂O molecule. Write the ground state configuration of O

⁸O: 1s², 2s², 2p⁴

You will find that O has 2 unpaired electrons. As I have explained earlier, O will also choose hybridization for stronger bonding. It has to include s, p_x with p_y and p_z, thus it gets 4 sp³hybridized orbitals. Out of 4 sp³hybridized orbitals 2 are occupied by lone pairs and 2 are used for sigma bonding with 1s of two H atoms. Here 2 lone pairs make a large distortion of tetrahedral shape which results in bent shape of H₂O molecule.

We have studied molecules which have pi and sigma bonds and molecules which have sigma bonds and lone pairs. Now we will take an interesting molecule SO₂, which has both sigma and pi bonds as well as lone pair of electrons. Let’s see how all of them affect the shape and hybridization of molecule.

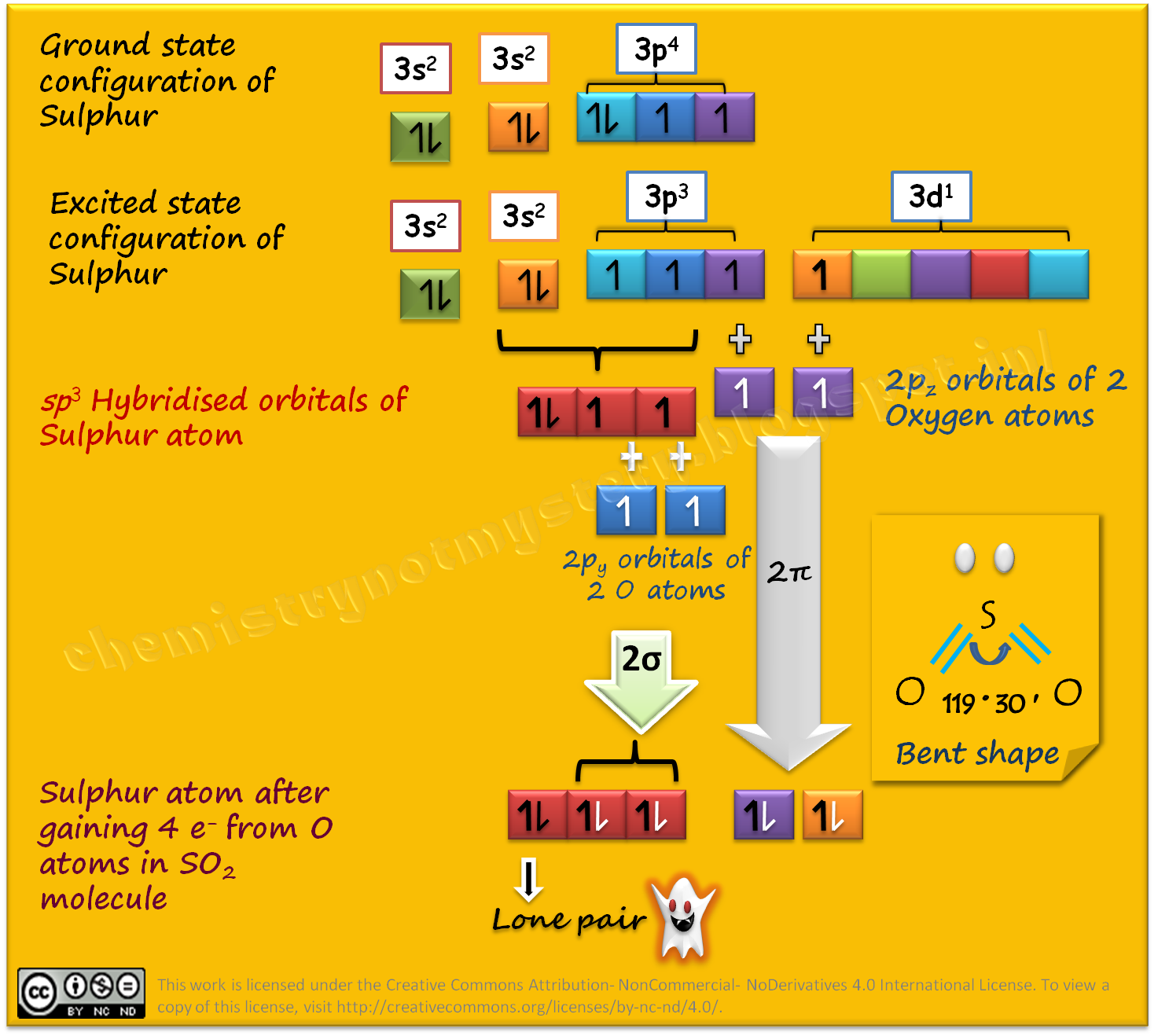

Write the ground state configuration of S

¹⁶S: 1s², 2s², 2p⁶, 3s², 3p⁴

S has 2 unpaired electrons but it needs 4 unpaired electrons, 2 for making 2 sigma bonds and 2 for making 2 pi bonds. So it excites one of the paired electron of p_x orbital and promotes it to the next orbital (d), it’s excited state configuration becomes:

¹⁶S: 1s², 2s², 2p⁶, 3s², 3p³, 3d¹

Here you may get confused again, when the energy of 4s is lesser than 3d, why does S promote its electron to 3d? Because S wants to get its atomic orbitals hybridized and to do so it has to make sure that all the orbitals must belong to the same orbit, so that they have comparable energies.

S chooses 3s, 3p_xand 3p_y for hybridization and gets three sp²hybridized orbitals. One of the three is occupied by a lone pair and remaining two are used for sigma bonding with 2p_yof O atoms. S leaves two orbitals free for pi bonding; its 3p_z orbital makes pi bond with 2p_z of one O atom and 3d_xz makes pi bond with 2p_z of the other O atom.

Three sp² hybridized orbitals of S arrange themselves in triangular shape but the ghost lone pair doesn't sit silently. It creates disturbance as usual and distorts the shape to bent shape and compresses OSO angle from ideal 120° to 119°30′.

Pi bonds do not interfere with the shape and bond angle of the molecule. But their presence shortens the bond length because they pull the bonded atoms closer for sidewise overlapping.

In SO₂ molecule the two sigma bonds are identical as they are formed by overlapping with sp² hybridized orbitals but what about pi bonds? One pi bond is formed by overlapping of 3p_z-2p_z and other is formed by 3d_xz-2p_z. Are they identical? Is it justified? In the world of atoms, there is no discrimination and everything is quite justified. We will see their unbiased and impartial behavioural aspect in our coming posts. In the next post we will see what is the advanced theory known as MOT (Molecular Orbital Theory) which solves the mystery of molecules.

This work is licensed under the Creative Commons Attribution- NonCommercial- NoDerivatives 4.0 International License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-nd/4.0/.

Hybridization: In molecules containing double and triple bond.

We have discussed hybridization in the molecules which have single bonds, in this post we will see how double and triple bonds are formed and how do they affect the hybridization. Hybridization is a phenomenon which is extensively used in the study of Carbon compounds. When I start my posts on organic chemistry, we will discuss different Carbon compounds and to understand their behaviour you will need to know which type of hybridization they undergo. That’s why I have created this post to give you just an idea about the role of hybridization in Carbon compounds and here we will learn hybridization through the example of H-CO-H molecule.

Try to draw H-CO-H molecule's Lewis dot structure and Kekule’s structure. In this molecule C forms single bond with each H and double bond with the O atom. I have told you that double bond is formed by two covalent bonds and denoted as two parallel dashes. But these two bonds are not identical because they are formed by different procedures. Let’s see how they are formed.

In the previous post you have learnt that a bond is formed by overlapping of orbitals. If I ask you to demonstrate this procedure with your hand how will you connect your hands? Some of you may try to connect your hands by touching the tips of your fingers and some of you may try to connect them side-wise, your palms facing each other.

Bonding orbitals also have two ways to overlap with each other. When orbitals form a bond by head on overlapping, they form a sigma (σ) bond, it is also called the single bond. When orbitals form a bond by side-wise overlapping they form a pi (π) bond. A double bond is formed by one sigma and one pi bond.

Let’s see how H-CO-H molecule is formed. Write the electronic configuration of H, O and C.

¹H : 1s¹

⁸O : 1s², 2s², 2p⁴

⁶C : 1s², 2s², 2p²

C needs four unpaired electrons to make bonds with H and O. So it promotes its one of the paired electrons of s orbital to the empty p orbital. Now its excited state configuration will become:

⁶C : 1s², 2s¹, 2p³

In H-CO-H molecule C forms 2 sigma bonds with H atoms and 1 sigma bond and 1 pi bond with O atom. If C chooses sp³ hybridization then all four hybridised orbitals will be pointed towards the corners of a tetrahedron. Two of them can make head on overlapping to form sigma/single bond with two H atoms. Remaining 2 will be used for bonding with O. C has to make one sigma bond and one pi bond with O. It can manage one head on overlapping but it is impossible to do side-wise overlapping in this spatial condition.

That’s why C plans a different way, it chooses one s and two p (p_xand  p_y) orbitals and hybridise them to get three sp²hybridised orbitals. These three orbitals are arranged in a triangular shape. This way C has the remaining unhybridised p_zorbital perpendicular to the triangle and now it is available for the side-wise overlapping. That’s how in H-CO-H molecule C manages to form three sigma bonds by using three sp²hybridised orbitals and forms one pi bond by using unhybridised p_z orbital.

Now take another example of HCN molecule. In this molecule C forms triple bond with N and single bond with H atom. Triple bond is formed by 1 sigma and 2 pi bonds. Let’s see how smartly C uses hybridization to form 2 pi and 2 sigma bonds.

C has 4 unpaired electrons in excited state. It uses only two orbitals for hybridization to form 2 sigma bonds and leaves 2 orbitals free for sidewise overlapping to form 2 pi bonds.

C chooses s and p_xorbital and hybridise them to get two sp hybridised orbital. One sp hybridised orbital forms sigma bond through head on overlapping with s orbital of H and other sp hybridised orbital forms sigma bond through head on overlapping with p_x orbital of N. Now C has 2 unhybridised orbital p_y and p_z ­, it uses them for sidewise overlapping with p_y and p_z ­orbitals of N respectively to form 2 pi bonds.

In the next post we will see how lone pairs affect the hybridization.

This work is licensed under the Creative Commons Attribution- NonCommercial- NoDerivatives 4.0 International License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-nd/4.0/.

Why BeF2 and BeCl2 are covalent not ionic: Fajans' rule

I hope now you have become quite familiar with atoms and able to predict their behaviour and motives. You can predict which element would prefer ionic bonding and which one likes to choose covalent bonding. Do you ever try to understand how they feel? Let’s try to understand them more closely. Atoms are like us, and as you understand them, you will find many more similarities with your behaviour.

Do you remember the first day of your friendship? When you meet someone for the first time, you like some of his qualities and dislike a few things. That means you are partly attracted towards him and at the same time something repels you too. Similar things happen to the ions when they come to bond together.

When the positive ion comes closer to the negative ion, it attracts electrons of negative ion but repels its nucleus. Similarly negative ion attracts the nucleus of positive ion and simultaneously repels its electrons. Thus each of them disturbs the harmony of the other. This disturbance is called the polarization and the susceptibility to get polarized is called the polarisibility.

You know that in covalent bond the bonding pairs of electrons (electron density) are located in between the bonded atoms and in ionic bond electron density is located near the negative ion (more electronegative element). If positive ion is strong enough to polarise negative ion, it will be able to pull electron density away from negative ion, as a result of which covalent character is introduced in their ionic bond.

The introduction of covalent character in ionic bond depends on the polarizing power of positive ion and polarisibility of negative ion. Let’s try to understand it.

Positive ion

• Formed by removal of electron from atom.
• That's why the number of protons are more than the number of electrons (i.e. higher effective nuclear charge)
• That’s why nucleus becomes more powerful and binds electrons more tightly.
• Powerful nucleus can pull electrons of negative ion and at the same time can defend its electrons to get polarised by negative ion.
• Hence it is less susceptible to get polarised and has more polarising power.
• Smaller positive ions have more polarising power.

Negative ion:

• Formed by addition of electron to the atom
• That’s why the number of electrons are more than the number of protons (i.e. less effective nuclear charge)
• Nucleus wouldn’t be able to bind electrons tightly as a result of which size of the ion increases.
• Because of the larger size of the negative ion nucleus is far way to be able to polarise positive ion.
• Due to less effective nuclear charge, nucleus is not able to defend electrons to get polarised by positive ions.
• Hence negative ion is weak in polarising ability and susceptible to get polarised.
• Larger negative ions are easy to get polarised.

Fajans gave four rules which summarise the factors favouring polarization and covalency.

1. A small positive ion favours covalency: Smaller ion has more polarising power and will be able to pull electron density away from negative ion.
2. A large negative ion favours covalency: Larger negative ions are easy to get polarised.
3. Large charges on either ion or on both ions favour covalency: High charge on positive ion increases its polarising power and high charge on negative ion increases its polarisibility.
4. Polarization, and hence covalency, is favoured if the positive ion does not have a noble gas configuration: Noble gas configuration is the most stable configuration (more stable than the full filled state) and most effective at shielding the nuclear charge, so the ions which do not have noble gas configuration (such as Tl ⁺¹,Pb⁺² and Bi⁺³) are highly polarising because their nuclei are able to radiate their power more efficiently due to lesser shielding.

In BeF₂ molecule Be⁺² ion is smaller and also have higher charge on it, hence it will be able to pull electron density away from F^-1 ions and introduce the covalence character. That’s why BeF₂ is a covalent molecule not an ionic. And for the similar reasons BeCl₂ is also a covalent molecule not an ionic molecule.

This work is licensed under the Creative Commons Attribution- NonCommercial- NoDerivatives 4.0 International License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-nd/4.0/.

sp2 and sp Hybridization

Today we will discuss the formation of Boron trifluoride BF₃ molecule. Let’s write the ground state configuration of central atom B and F.

⁵B – 1s², 2s², 2p¹

⁹F – 1s², 2s², 2p⁵

B needs 3 unpaired electrons or you can say it needs 3 hybridised orbitals to make bonds with 3 atoms of F. That’s why B supplies some energy to 2s to lifts it to the level of 2p. In this way one of the paired electron of 2s jumps to the vacant orbital of 2p. Now this excited state has the following configuration:

⁵B – 1s², 2s¹, 2p²

Now B chooses one 2sorbital and two of the 2p orbital and hybridises them to get three hybridised sp²orbitals. These three hybridised sp²orbitals get arranged in a triangular shape (fan shaped). Now F atoms come closer to B so that their 2p_zorbitals get overlapped with these hybridised sp² orbitals and make bonds. Thus BF₃ molecule is formed by bonding between three sp²orbitals of B and p of 3 F atoms.

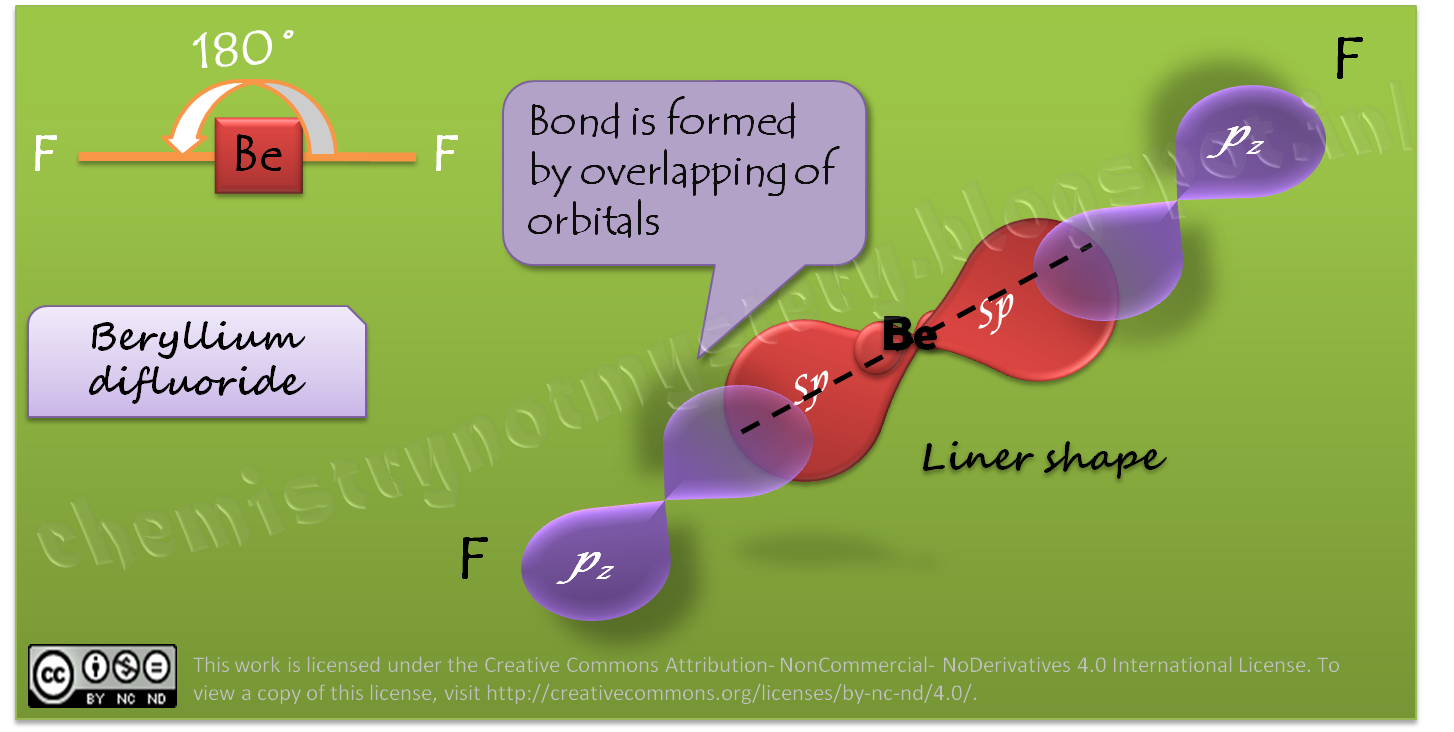

Let’s take another example of Beryllium difluoride BeF₂ molecule. Here you might raise a question about the nature of BeF₂ molecule. You might have debated that it is an ionic compound because Be belongs to the 2^nd group and F belongs to the 17^th group and they have a large electronegativity difference. I have told you in one of my previous posts that a bond will be purely covalent only if the electronegativity difference between bonded atoms is less than 1.7, but in BeF₂ it is 2.5 which is much greater and still BeF₂molecule is a pure covalent compound. It is one of the few exceptions but has an explanation. I will discuss it in detail in the coming post.

Write the ground state configuration of Be and F:

²Be – 1s², 2s²

⁹F – 1s², 2s², 2p⁵

Be has 2 paired electrons but it needs 2 unpaired electrons to combine with unpaired electrons of two atoms of F. Outer orbit of Be has two orbitals s and p so it promotes its one electron to the p orbital. Now it’s excited state configuration will be

²Be – 1s², 2s¹, 2p¹

With the promotion of electron, 2s orbital also gets promoted to the level of 2p orbital. Now Be picks ones and one p orbital and hybridises them to get two sphybridised orbitals. These two sphybridised orbitals get arranged in a linear shape.

Now two F atoms come closer to Be atom and sp hybridised orbitals of Be andp orbital of F get overlapped with each other and make bonds. Thus BeF₂molecule is formed by bonding between sp-p.

Up to now we have discussed those molecules which have single covalent bonds. In previous post of covalent compounds we have seen two more type of covalent bonds double bond and triple bond. How are these bonds formed? You know these bonds are formed by sharing of 4 and 6 valence electrons respectively. What is the role of orbitals in their formation? We will see the sights of orbitals in the formation of double and triple bond in the next post.

This work is licensed under the Creative Commons Attribution- NonCommercial- NoDerivatives 4.0 International License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-nd/4.0/.

Hybridization: sp3 hybridization in Methane

We have discussed the formation of CH₄ in the last post. We have seen that in CH₄  molecule bonds are formed by one s and three p orbitals of C. That means it must have two kinds of bonds, one which is formed by s orbital and the others which are formed by p orbitals of C. But the chemical and physical evidences indicate that it has 4 identical bonds. To solve this mystery scientist proposed the hypothesis (virtual theory) of Hybridization. There are no evidences that it exists but it gives an explanation and it is extensively used in the study of carbon compounds.

Let’s have a look on CH₄ molecule again in the light of this hypothesis. Carbon has 1 spherical s orbital and 3 dumbbell shaped p orbitals but it wants 4 identical orbitals so it uses hybridization.

This hybridization is similar to the hybridization you use in your garden, when you hybridise white rose with red rose you get pink rose. Pink rose is a combination of them but is different from them. C applies similar technique to get identical orbitals. But there is a condition that C can hybridize only those orbitals which have similar energy and 2s has lesser energy than 2p. So C supplied some energy to 2s orbital and lifts it to the same level of 2p orbitals. Now it can mix its one spherical 2s and three dumbbell shaped 2p orbitals and get four identical hybridised orbitals named as sp³. These hybridised orbitals are equal in energy and identical in shape. Their shape is neither spherical nor dumb-belled but it’s somewhat between them.

Each sp³ hybridi​s​ed orbital accommodates unpaired electron of C. These sp³ hybridised orbital arrange themselves in a tetrahedral shape to keeps equal and maximum distance from each other.

H has one unpaired electron in its s orbital. H comes closer to C so that its s orbital and sp³ hybridised orbital of C could get overlapped with each other. After overlapping of orbitals they share their electrons and make bonds. Thus CH₄ molecule is formed by bonding between four sp³ orbitals of C and s of four H atoms.

In hybridization we have learnt that:

• Only the orbitals which have similar energy can be mixed by hybridization.
• Number of hybridised orbitals is equal to the number of atomic orbitals that participate in hybridization. For example, one s and three p orbitals hybridised to form four sp³ hybridised orbitals.
• Hybridised orbitals of central atom decide the shape of the molecule.
• Bonding occurs by overlapping of hybridised orbitals of central atom and the orbital of other atoms.

Let’s take another example of BF₃ molecule. Central atom B needs 3 orbitals but it has one s and three p orbitals. In the next post we will see that how does Boron use hybridization to get 3 equivalent hybridized orbitals?
